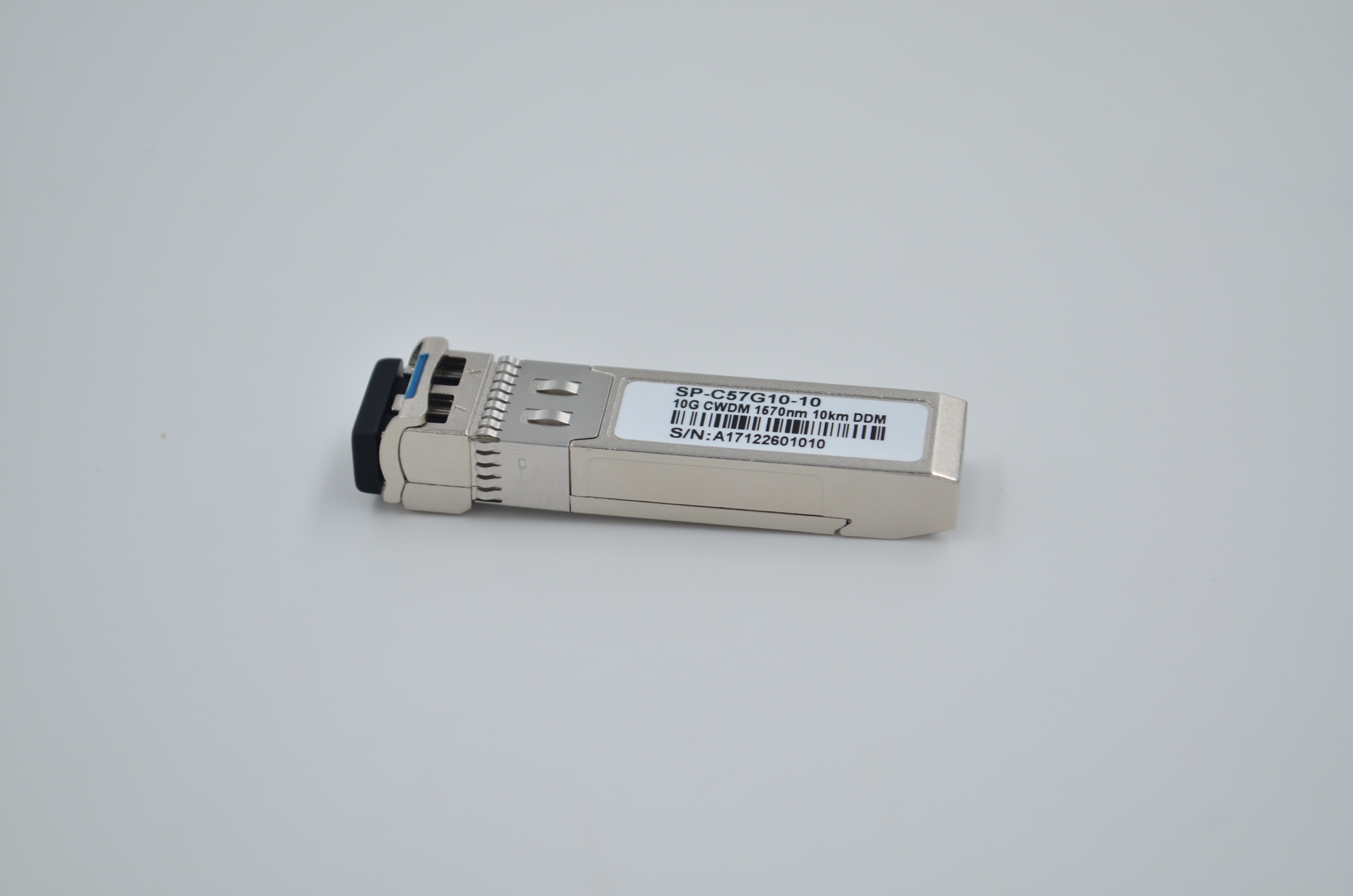

The 10G CWDM 1570nm 10km optical transceiver module is engineered to deliver robust performance for modern high-speed communication networks. Designed with advanced Coarse Wavelength Division Multiplexing (CWDM) technology, this module operates at the 1570nm wavelength to enable efficient fiber integrity over extended distances.
Key Features & Advantages
1. 10Gbps High-Speed Transmission
- Supports data rates up to 10.3125Gbps (10GBASE-ZR), meeting the demands of bandwidth-intensive applications.
- Ideal for backbone networks, metro Ethernet, and enterprise-level data transmission.
2. Long-Haul 10km Reach
- Achieves reliable 10-kilometer transmission over single-mode fiber (SMF) with minimal signal attenuation.
- Incorporates high-sensitivity receivers and low-noise amplifiers for extended operational range.
3. CWDM-Optimized Wavelength Stability
- Precision-tuned 1570nm DFB laser ensures compliance with ITU-T G.694.2 CWDM grid specifications.
- ±0.1nm wavelength tolerance guarantees interference-free multiplexing/demultiplexing.
4. Enhanced Network Reliability
- Built-in digital diagnostics monitoring (DDM) via I²C interface for real performance tracking.
- Industrial-grade components rated for -40°C to +85°C operation ensure stability in harsh environments.
