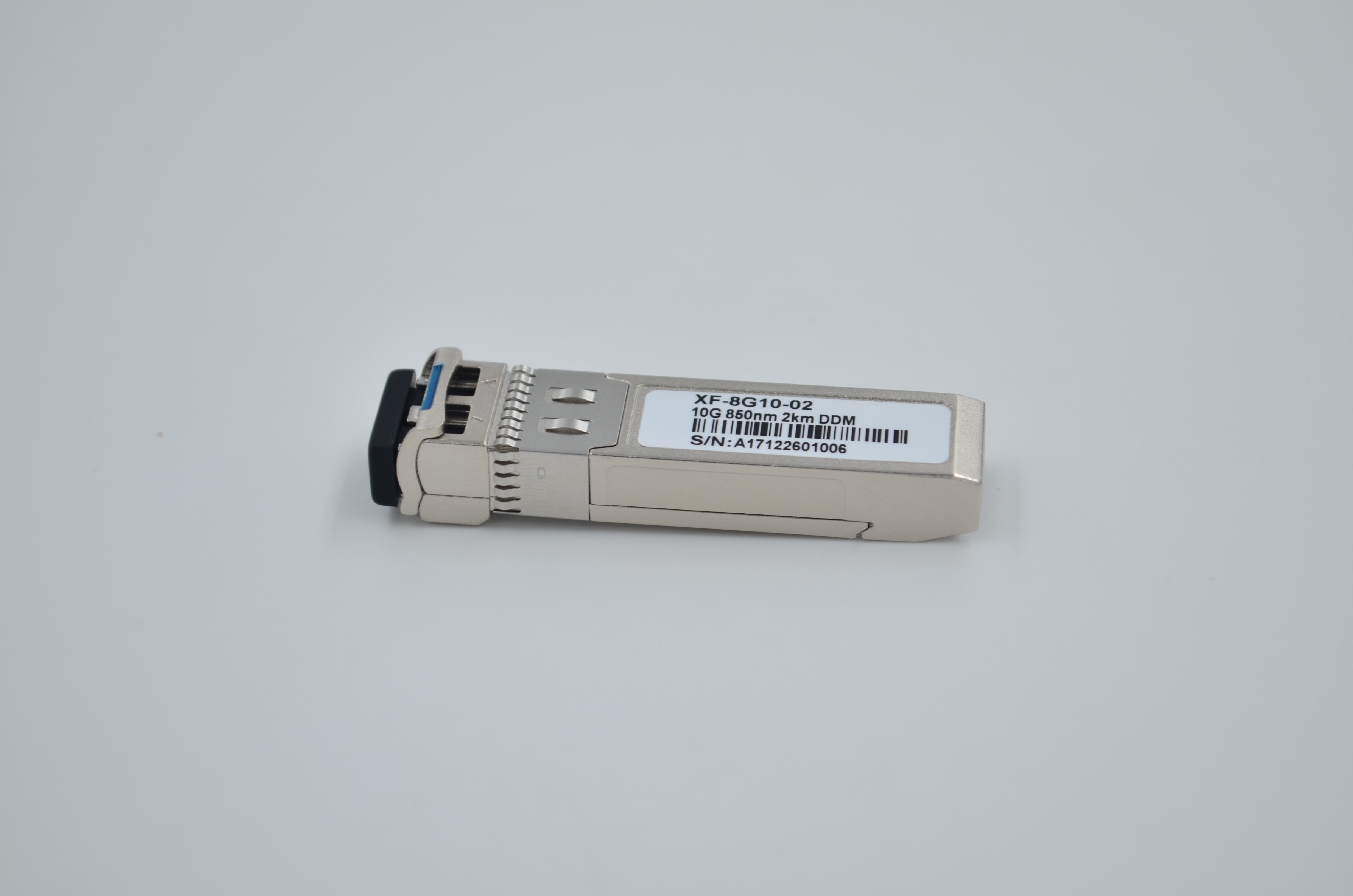

The 10G 850nm 2km optical transceiver sets a new benchmark in short-reach network solutions, engineered to deliver 10Gbps high-speed transmission with 2km extended reach over multimode fiber (MMF). This SFP+ form factor module combines cutting-edge 850nm VCSEL technology with advanced signal processing to meet the growing demands of modern data Key Features & Advantages
- 10Gb/s Data Rate: Supports 10GBASE-SR/SW applications with full compliance to IEEE 802.3ae standards
- Extended 2km Reach: 4× greater transmission distance than conventional 550m SR modules
② Enhanced Signal Integrity
- cision TOSA Design: Optimized 850nm laser with industry-leading +2.0dBm output power
- Advanced CDR Circuitry: Maintains BER <10⁻¹² across entire operating temperature range (-40°C to +85°C)
③ Operational Excellence
- Power Efficiency: <1.2W typical power consumption with digital diagnostics monitoring
- **F (2000MHz·km) and OM4 (4700MHz·km) MMF
Technical Superiority
- Jitter Performance: <0.3UI RMS transmitter jitter
- Receiver Sensitivity: -11.1dBm (typ) @ BER 10⁻²
- Eye Safety: Compliant with IEC 60825-1 Class 1 Laser Safety
Application Scenarios
✓ Data center spine-leaf architectures
✓ Enterprise campus network backbones
✓ High-performance computing clusters
✓ Video surveillance aggregation networks
