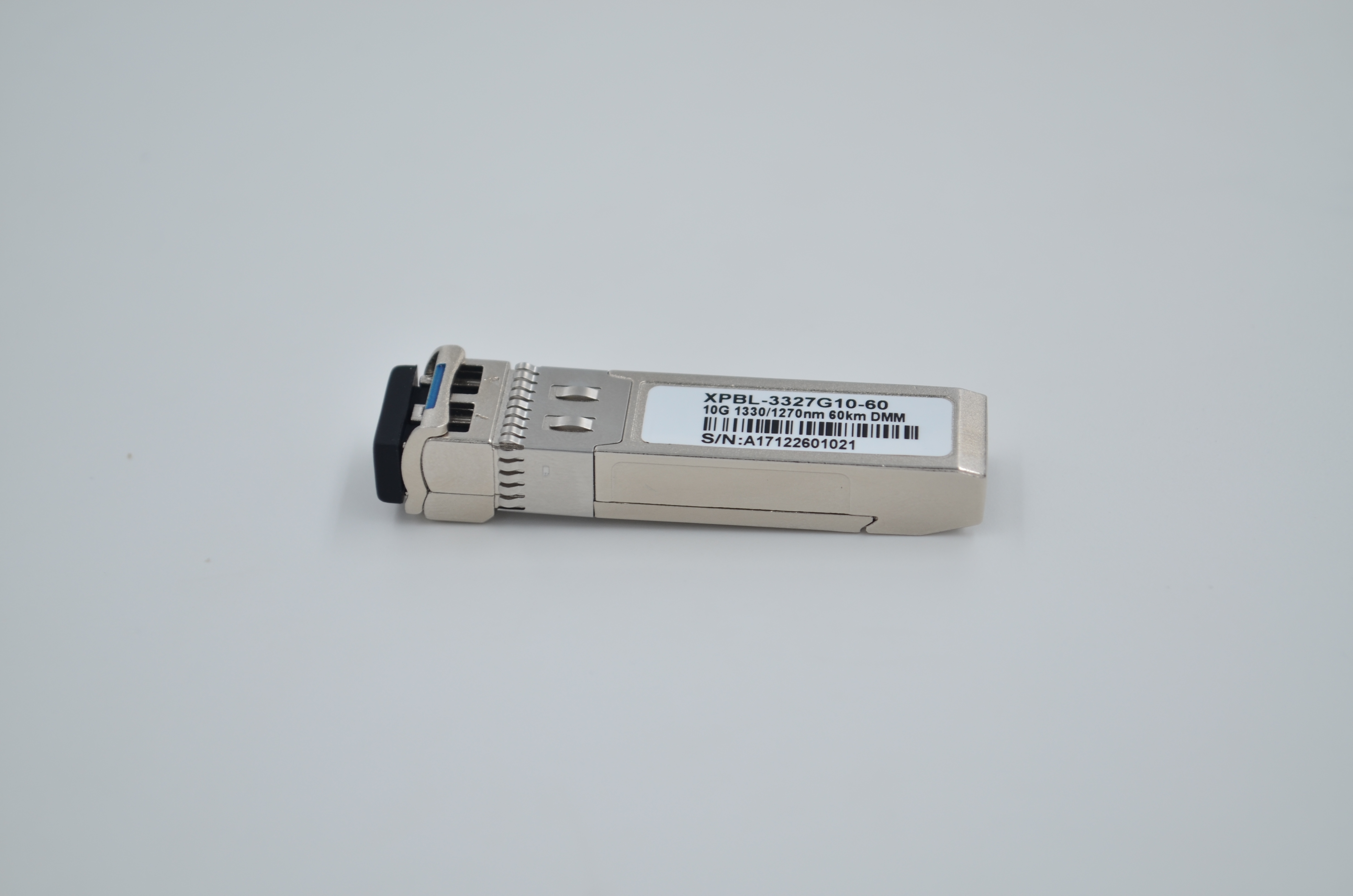

The 10G 1270-1330nm 60km optical transceiver is engineered for high-performance, long-haul data transmission in modern optical communication networks. Operating within the O-band spectrum, this dual-wavelength solution delivers robust 10Gbps connectivity over extended distances up to 60km, making it an ideal choice for mission-critical 1. Dual-Wavelength Operation (1270-1330nm)
- Supports simultaneous transmission across two optimized wavelengths
- Enhances spectral efficiency for dense wavelength division multiplexing (DWDM) systems
- Reduces crosstalk and nonlinear effects through precise wavelength control
2. Extended Reach Capability
- 60km transmission distance signal regeneration
- Integrated high-sensitivity APD receiver with -28dBm receiving sensitivity
- Compliant with ITU-T G.652/G.655 fiber standards
3. temperature range (-40°C to +85°C)
- Advanced CDR (Clock Data Recovery) circuitry for signal integrity
- 100,000+ hours MTBF (Mean Time Between Failures)
Technical Advantages
- Low Latency: <0.1ns/km dispersion characteristics
- Power Efficiency: 3.3V single power supply with <1.5W consumption
- Compatibility: Hot-pluggable SFP+ form factor with digital diagnostics monitoring (DDM) Target Applications
- Metro/Regional network backbone links
- 5G fronthaul/backhaul infrastructure
- Data center interconnect (DCI) solutions
- Enterprise campus network extensions
