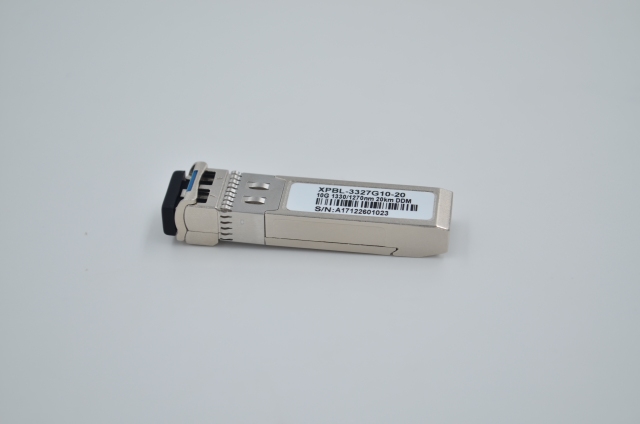

The 10G 1310nm 20km optical transceiver is a high-performance fiber optic communication module designed for enterprise networks and telecom carriers requiring reliable long-haul data transmission. Operating at 1310nm wavelength over single-mode fiber (SMF), this SFP+ form factor module delivers 10Gbps data rate with making it an ideal solution for modern bandwidth-intensive applications.
Key Features
- Supports 10.3125Gbps data rate (10GBASE-LR standard)
- Enables seamless 4K video streaming, cloud computing, and big data transmission
- Backward compatible with 1G/2.5G networks for infrastructure flexibility
2. Extended Reach with Low Signal Degradation
- 20km transmission capability without signal repeaters
- 1310nm wavelength optimized for minimal dispersion in SMF
- Typical power consumption <1.5W for energy-efficient operation
3. Enhanced Signal Integrity
- Advanced APD/TIA receiver design for -23dBm sensitivity
- Transmit power range: -8.2dBm to +0.5dBm
- BER <10⁻¹² ensuring data transmission reliability
4. Robust Environmental Adaptability
- Operating temperature: -40°C to +85°C
- Compliant with 60825-1 & FDA 21 CFR 1040.10 laser safety standards
- RoHS 2.0 compliant components
