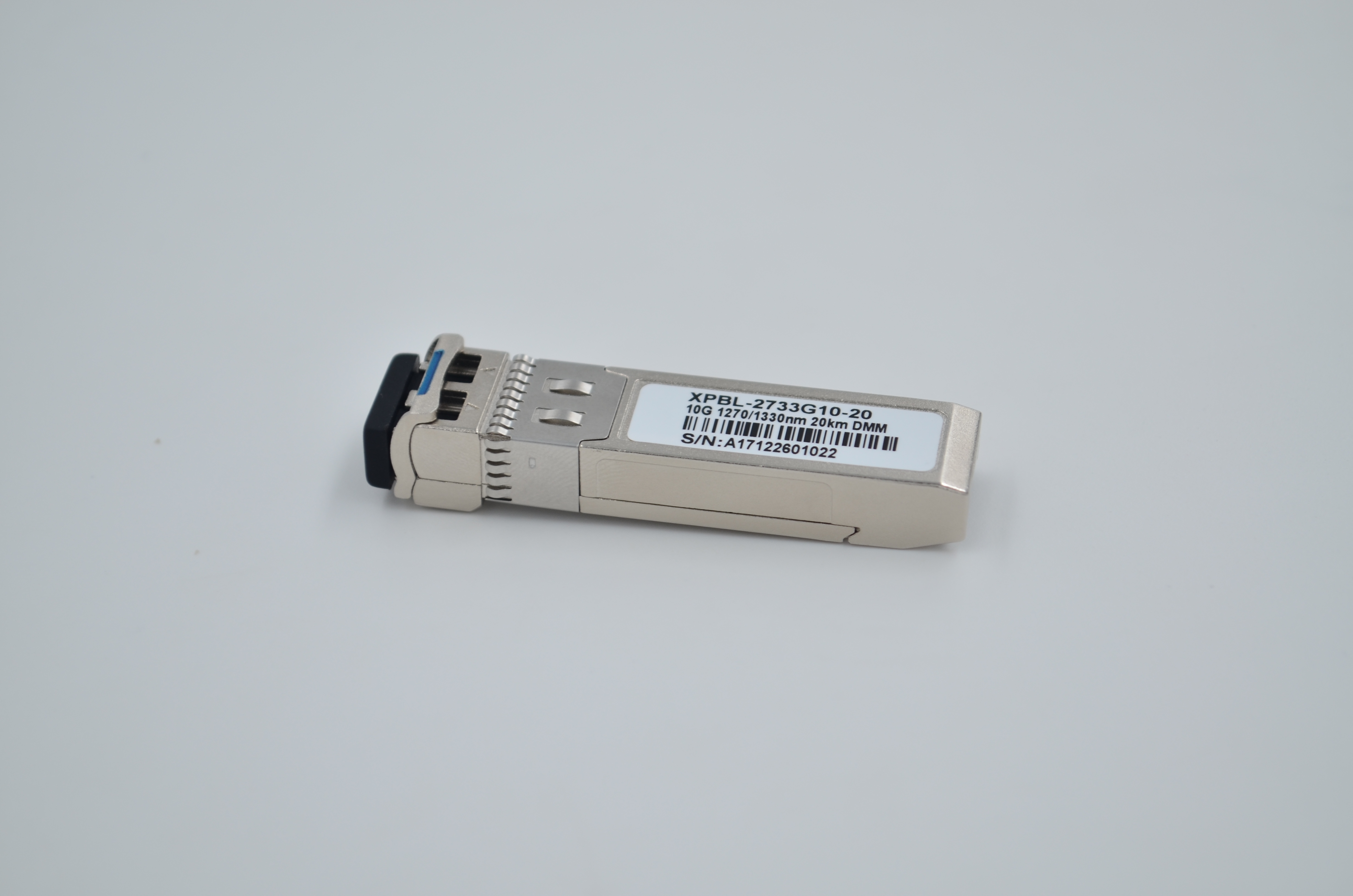

The 10G 1270-1330nm 20km Optical Transceiver is engineered to deliver robust performance in modern fiber optic networks. Operating within the O-band spectrum (1270-1330nm), this transceiver combines high-speed 10Gbps data transmission with an extended reach of 20 kilometers, making it an ideal solution for network operators requiring reliable connectivity across distributed infrastructure.
Key Features & Advantages
1. 10Gbps High-Speed Transmission
- Supports data rates up to 10.3125Gbps (10GBASE-ZR)
- Enables seamless integration with next-generation network equipment
- 20km reach with ≤1.5dB insertion loss
- Enhanced dispersion tolerance for stable signal integrity
3. O-Band Wavelength Operation
- 1270-1330nm wavelength range
- Minimizes nonlinear effects in single-mode fiber (SMF)
- Superior chromatic dispersion characteristics vs. conventional C-band solutions
4. Network Architecture Flexibility
- Hot-pluggable SFP+ form factor
- Compatible with standard SMF (G.652/G.655)
5. Enterprise-Grade Reliability
- Operating temperature: -5°C to +70°C
- Built-in DDM/DOM monitoring
- Class 1 Laser Safety Certified (IEC 60825-1)
Target Applications
- Telecom Backbone Networks: Metro access/aggregation layers
- Enterprise Network Expansion: Campus/corporate network interconnections
- Critical Infrastructure Links:
- Data center interconnects (DCI)
- Video surveillance backhaul
- Industrial automation systems
